Atomic force microscopy

Using atomic force microscopy (AFM) it is possible to scan conductive sample surface with a fine tip, which is attached to a cantilever.

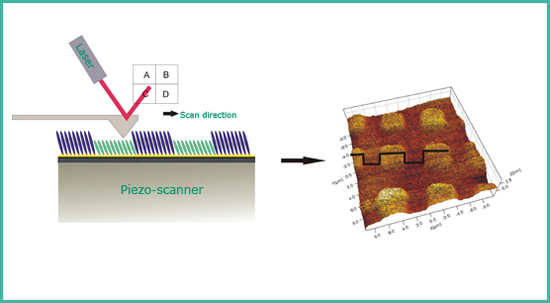

The tip scans a square area of the sample line by line, where a laser beam is aimed at the upper side of the cantilever and its reflection beam falls on the detector. The interaction force between the tip and the sample is measured while the cantilever is moving and thus is the reflection of the laser beam on the photodiode in the detector field.





AFM-Funktionsweise





Since the detector field is divided into four different fields, the migration of the laser on the photodiode, providing different voltage levels, which is formed from a differential signal.



There are two ways to handle this difference signal. It can be converted directly into a height profile, or send in a feedback loop to the piezo element so that this unit readjusts the cantilever so that the power of the print head remains constant. In the first case one speaks of a constant height-mode, in the following mode of constant-force.


Measurements can be done in air and in liquid, whereby the resolution can go through the variation of the cantilever and scanner up to the atomic level.



The atomic force microscope from Digital Instruments (NanoScope NanoScope IIIa MultiMode with control unit) also offers the possibility through the reconstruction of the measuring head to operate in scanning tunneling microscopy mode.





AFM-Anwendungen
 Examples of different possible applications for the Atomic force microscopy (AFM)
